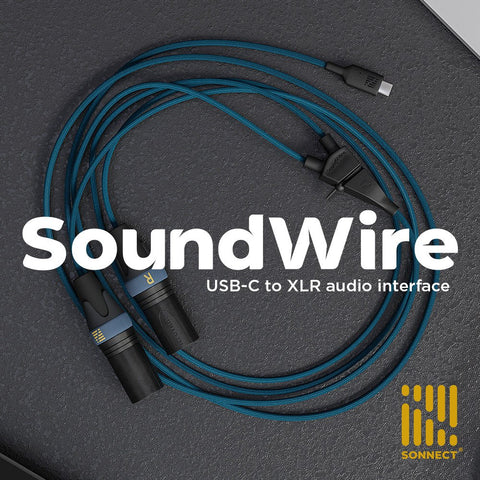

The SoundWire is the first-of-its-kind USB-C to XLR interface, empowering sound engineers to get audio from their playback device directly to the mixing console with just one simple, reliable and easy-to-use cable.
This groundbreaking device features:
● HQ DAC embedded in the USB-C connector
● Cleverly concealed transformers within the XLR housing for balancing and isolation from phantom power
● Plug-and-play. No drivers needed. Compatible with macOS, Windows, Android, and iOS
● Innovative cable-tie system

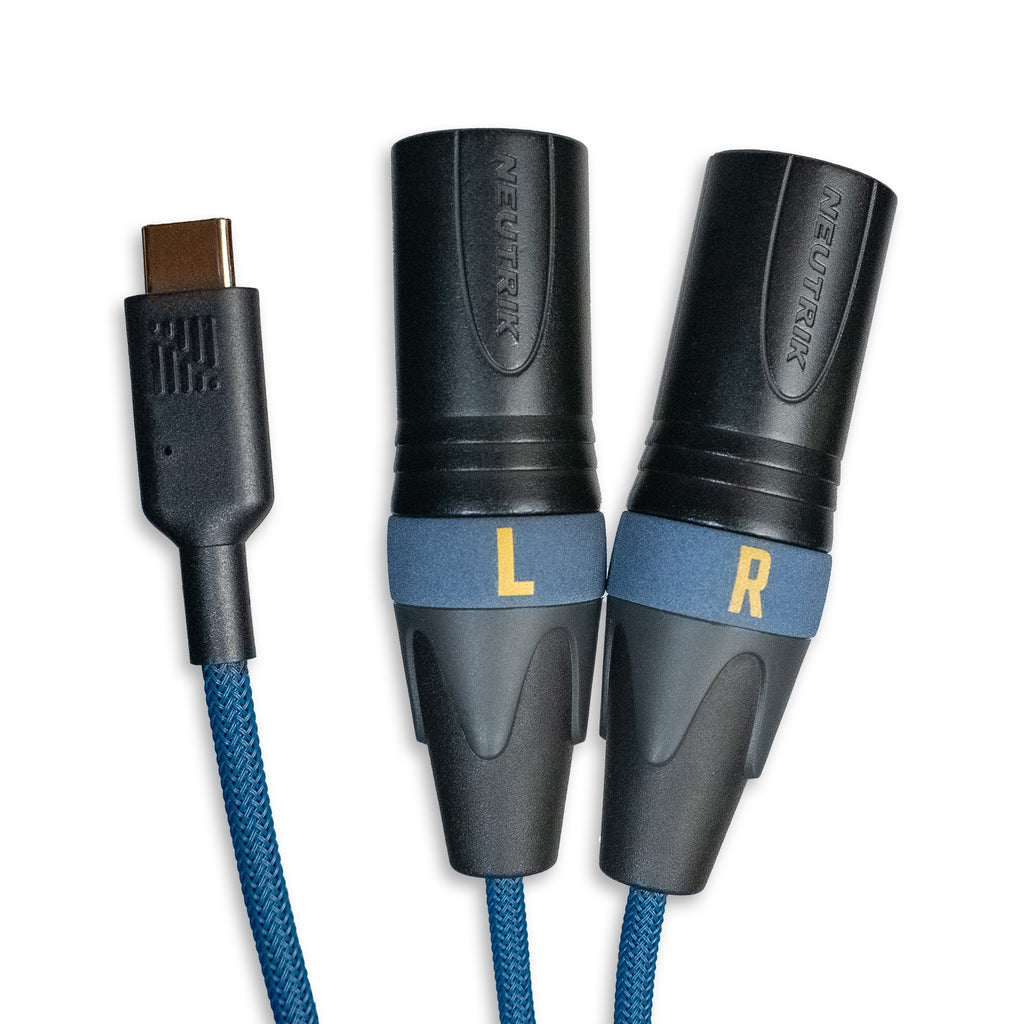

● Crafted with a durable braided cable and premium Neutrik XLR gold-plated connectors.

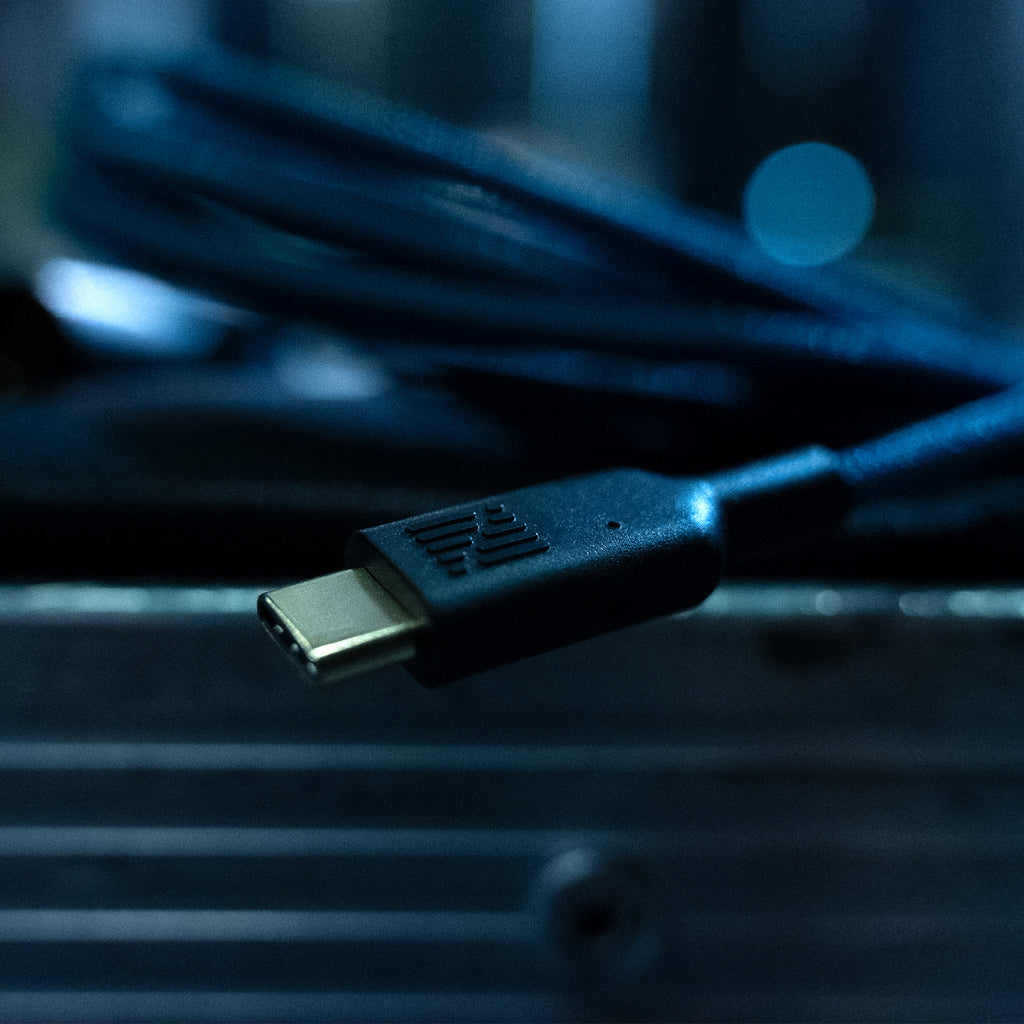

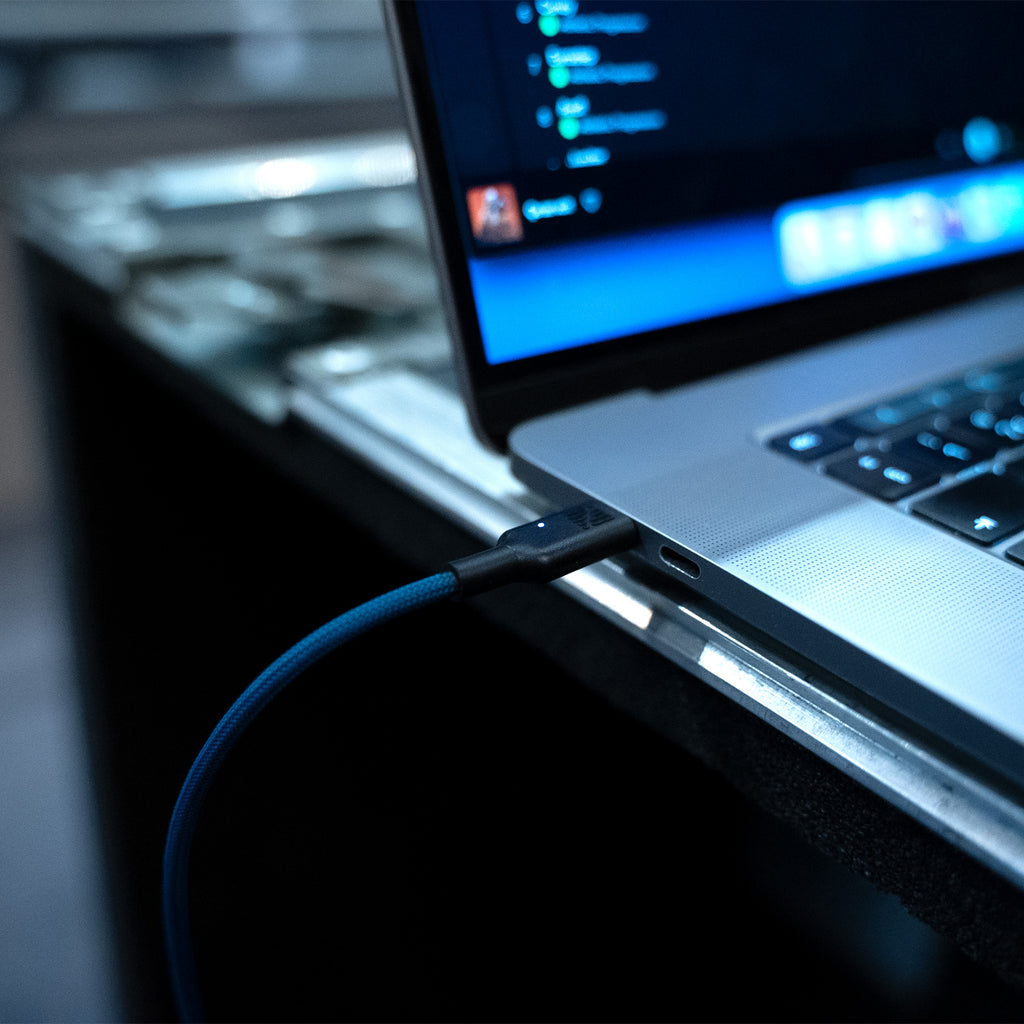

The USB-C DAC delivers pristine 192 kHz, 32-bit audio. No drivers needed; simply plug it into your laptop or smartphone and select ‘SoundWire’ as audio device.

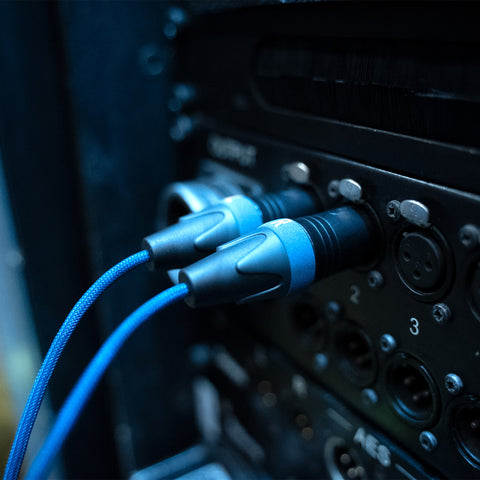

Custom transformers housed in the XLR connectors balance the signal, eliminating the need for DI boxes and protecting your playback device from accidental 48V activation.
To ensure exceptional audio quality, interference-rejection and minimise cross-talk, the cable features a shielded QuadCore wiring configuration.
A custom-made 24 Nylon twin-fibre braid sleeving strengthens the cable, protecting it from accidental tugging or pinches. The braid is detached from the cable, ensuring maximum flexibility and a soft touch.
Reusable tie cord is permanently attached to the Y-split, saving you using tape and the environment from unnecessary waste.
SoundWire included Accessories

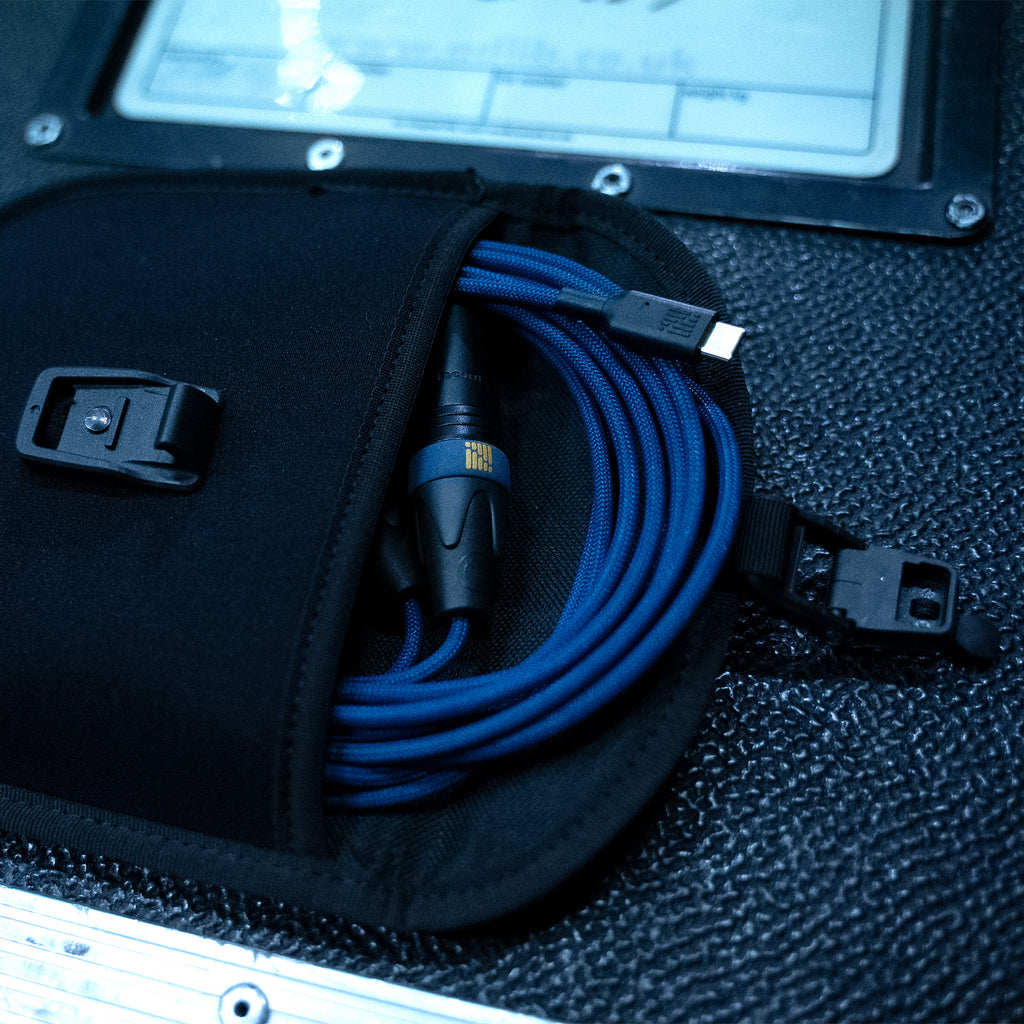

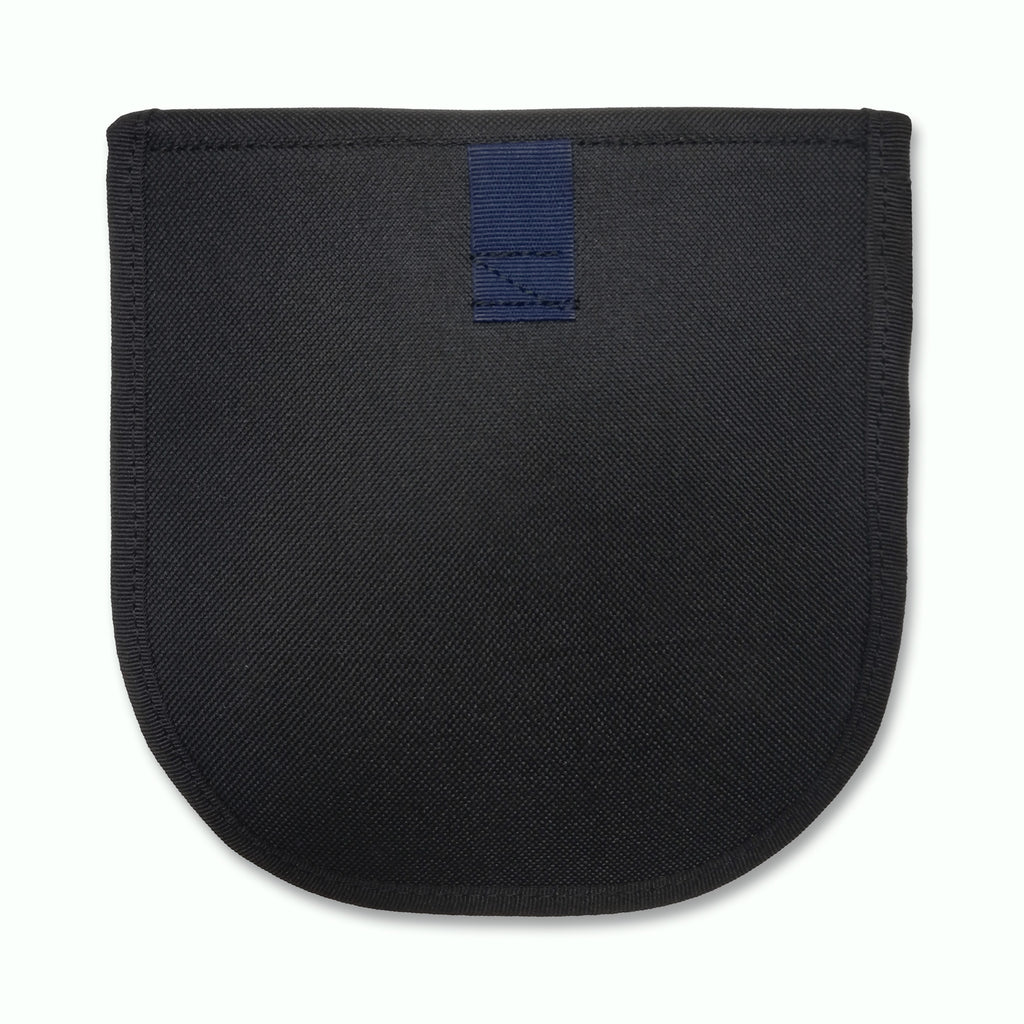

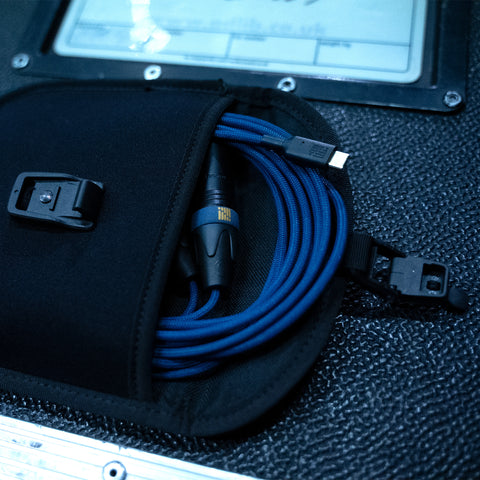

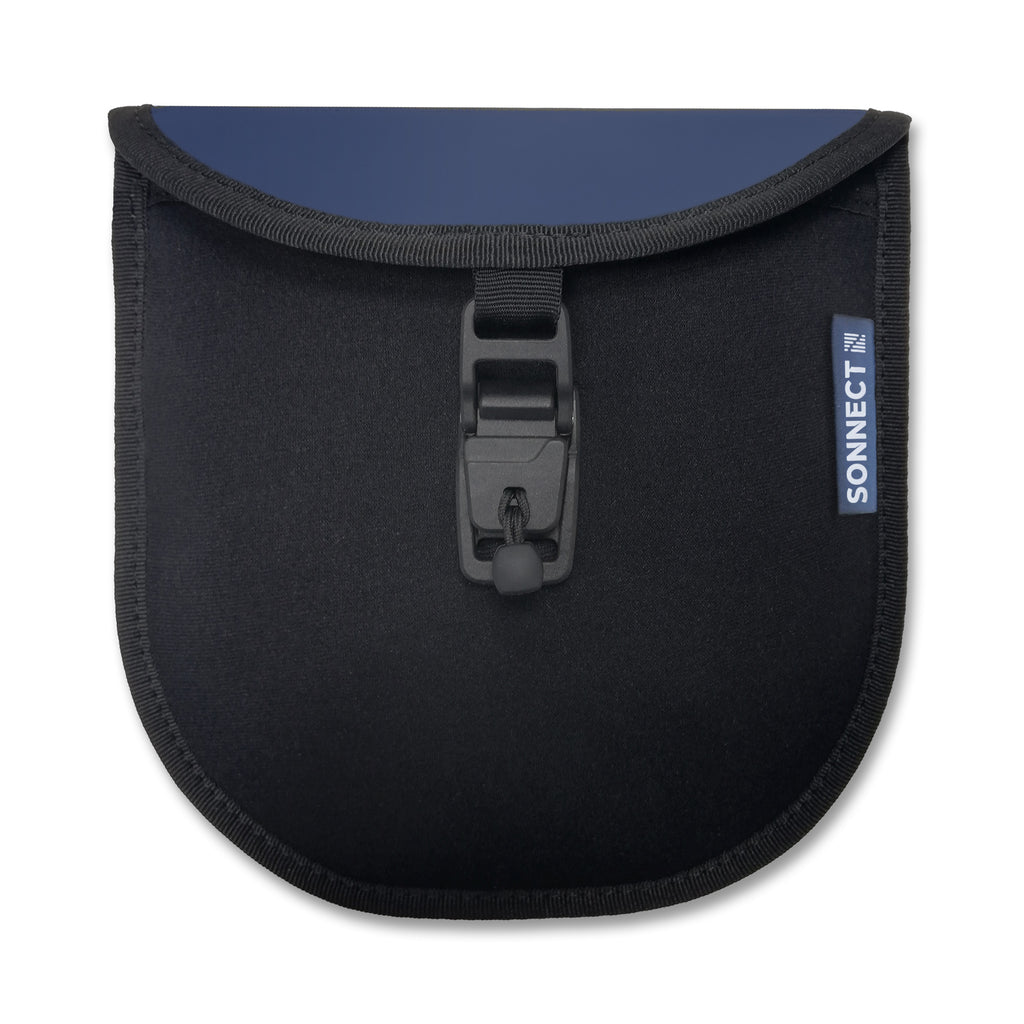

Pouch
Crafted from durable fabric and advanced Neoprene, our custom-designed pouch keeps the SoundWire neatly organised and easily accessible, preventing it from getting lost or tangled among other equipment when stored. The pouch features Fidlock®, a quick snap-on magnetic fastening technology, for further ease of use.

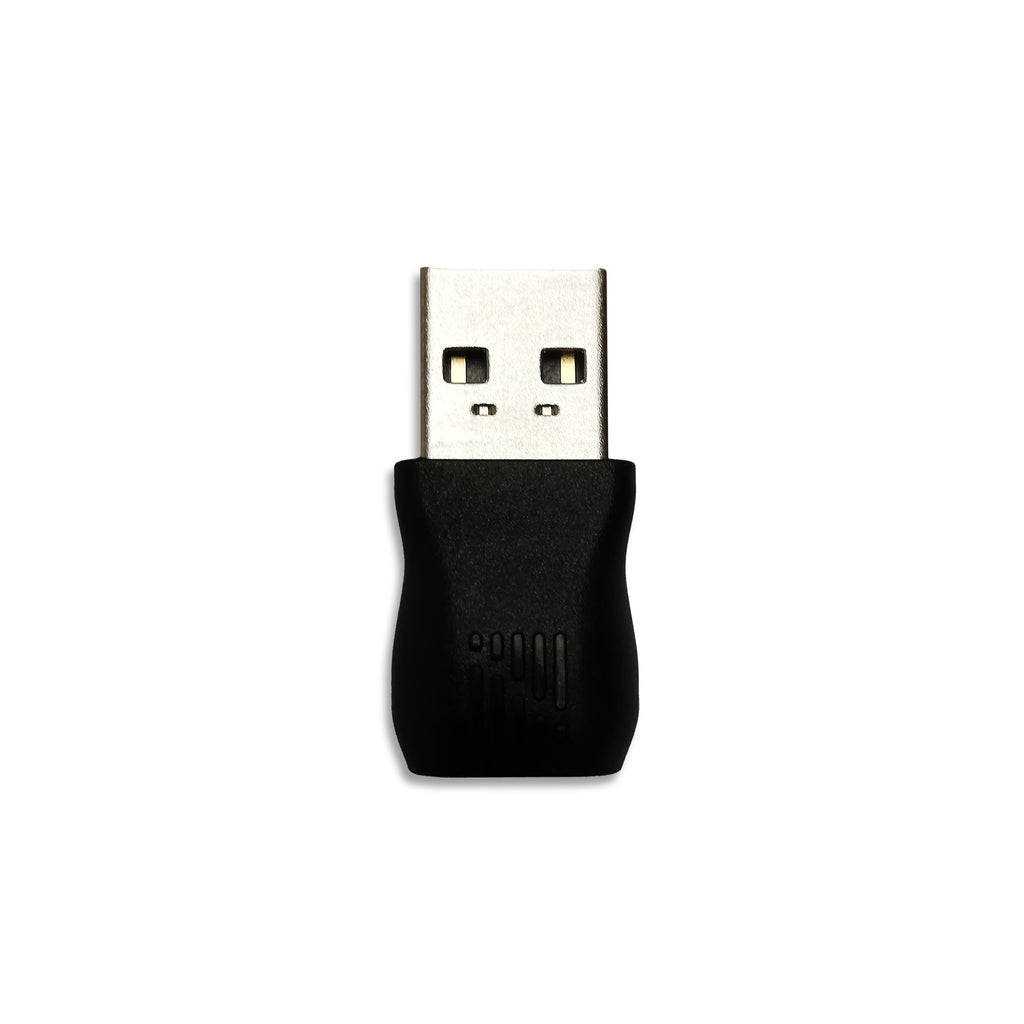

USB-C Adapter
The Sonnect-branded USB-A to USB-C adapter enables users to connect their SoundWire to a legacy USB-A port. The custom design fits snugly around the USB-C connector, creating a strong and seamless connection.
Product Specs
Channels: 2 output (left + right)
Sampling rate: 192 kHz
Bit depth: 32 bit
Dynamic Range: >110 dB (A-Weighted)
THD: -103 dB
THD + N: -100 dB @ -1 dBFS
Output Level: 0 dBu @ 0 dBFS
Cross-talk: <-110 dB @ 1 kHz
Frequency response: 20 Hz - 22 kHz
Output Impedance: 150 Ohm
Current absorption: 100 mA
Output type: transformer-balanced XLR
Digital connection: gold-plated Type-C USB
Analog connection: 2 x gold-plated Neutrik XLR
Cable length: 2.8 m | 9 ft
Weight: 140 g
